High-value aerospace tooling demands absolute precision — not just in manufacture, but in how it is handled, stored, and transported. This field report covers the preservation of an Integrated Fixation System (IFS) Assembly Jig, weighing 29,000 lbs, during intermodal transport and warehouse storage.
When equipment tolerances are measured in thousandths of an inch, even minor environmental exposure can impact performance. The objective here was clear: maintain calibration integrity and protect sensitive control systems from any form of degradation during transit.
The Asset: High-Precision Aerospace Tooling
The Integrated Fixation System (IFS) assembly jig is a critical piece of aerospace manufacturing infrastructure. It is used to align and support components during production, meaning its accuracy directly impacts downstream build quality.
With sensitive electronics, precision-machined surfaces, and heavy structural framing, the system is both mechanically robust and highly vulnerable to environmental change.
The Risks: The Cost of Misalignment
Transporting a 29,000 lb precision instrument introduces risks that extend well beyond physical handling.
Calibration Drift
Temperature fluctuations and moisture ingress can cause subtle shifts in alignment, affecting high-tolerance calibration.
Electronic Vulnerability
External control panels, sensors, and wiring systems are highly sensitive to humidity, dust, and road salt exposure during transit.
Atmospheric Corrosion
Machined surfaces and steel frameworks are at risk of flash rusting and pitting, which can compromise long-term structural integrity.
Foreign Object Debris (FOD) Ingress
Even small particles entering joints, housings, or control systems can lead to failure during initial production use.
For aerospace tooling, these risks translate directly into downtime, rework, and increased operational cost.
The Solution: Safe Seal Engineered Containment
To protect the asset throughout transport and storage, Safe Seal Wrap was applied as a fully engineered containment system — designed to create a controlled protective environment around the equipment.
Strategic Protection

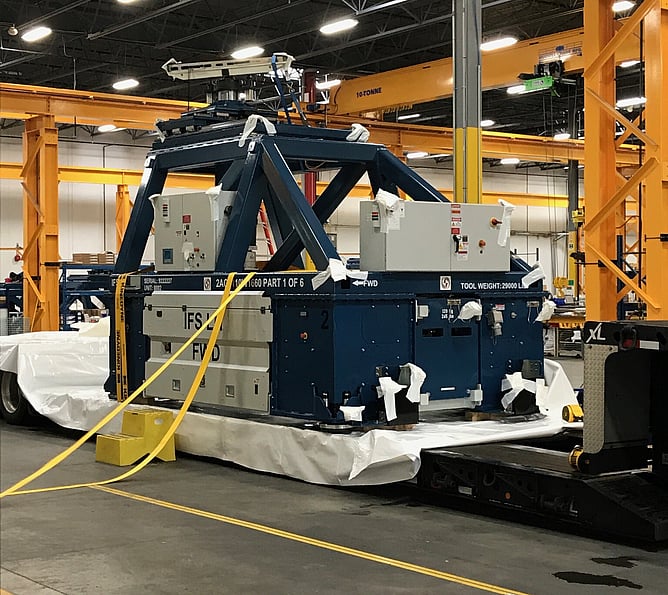

All sharp edges, sensitive sensors, and exposed components were carefully padded prior to wrapping, ensuring the integrity of the containment system and the asset beneath it.
Hermetic Heat-Seal Barrier

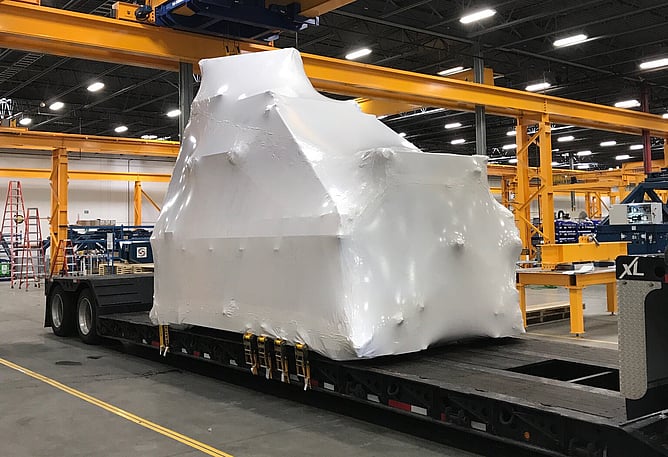

A heat-welded polyethylene envelope created a continuous, airtight, and moisture-proof seal — providing a level of protection that traditional tarps cannot achieve.
UV and Thermal Stability
The opaque white film reflects solar radiation, helping to stabilise internal temperatures and reduce the risk of thermal expansion affecting precision alignment.
Clean-Room Readiness
By fully sealing the system, the tooling arrives in a factory-clean condition, reducing or eliminating the need for re-cleaning, inspection delays, or recalibration.
Stakeholder Benefit: Precision Protected
For aerospace manufacturers and logistics teams, the value of protection is measured in more than material safety — it is measured in time, accuracy, and operational readiness.
Safe Seal Wrap ensures:
Calibration integrity is preserved throughout transit
Sensitive electronics remain protected from environmental exposure
Machined surfaces arrive free from corrosion or contamination
Rework and cleaning requirements are significantly reduced
Equipment is ready for immediate integration into production
Why It Matters
In aerospace manufacturing, precision cannot be recovered once lost. Protecting high-value tooling during transit is not optional — it is essential to maintaining production quality and schedule certainty.
Safe Seal Wrap provides engineered containment solutions designed for exactly these environments, ensuring critical equipment moves safely from one stage of operation to the next.
Because when precision matters, protection must be absolute.
